Brush and Brushless Motors

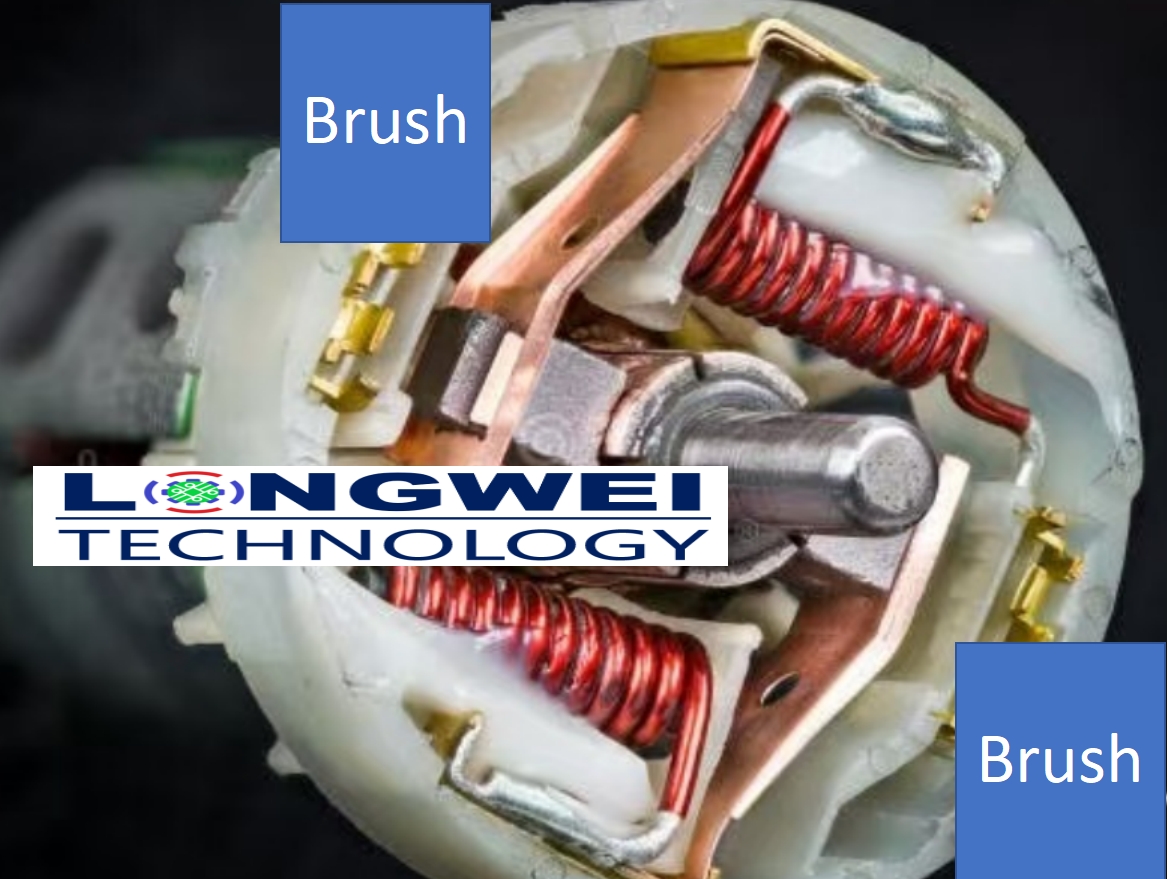

A brush motor operates through a combination of electrical and mechanical processes. It comprises a stationary part called the stator, which contains wire coils connected to a power source. When electrical current flows through these coils, it generates a magnetic field.
The rotating part of the motor is the rotor, which features windings and a commutator. Carbon brushes press against the commutator. As the rotor spins, the brushes maintain electrical contact with the commutator, periodically reversing the current direction in the rotor windings. This reversal of current creates a rotating magnetic field within the motor, inducing rotational motion in the rotor.
Advantages:
- Typically less expensive and simpler to construct than brushless motors.
Disadvantages:
- Sometimes have a shorter lifespan when compared to brushless motors.
Brush Motor

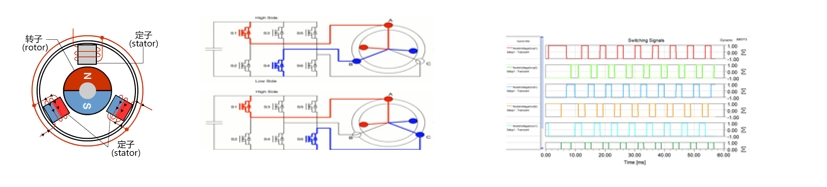

A brushless motor operates by using magnets and electromagnets to create motion. It consists of a rotor with permanent magnets and a stator with electromagnets. When an electric current flows through the stator windings, it generates a rotating magnetic field. This magnetic field interacts with the permanent magnets on the rotor, causing it to turn. The commutation, or switching of current, is managed electronically, ensuring the electromagnets on the stator are always in the right position to keep the rotor turning smoothly. This design eliminates the need for physical brushes, resulting in a more efficient and reliable motor.
Advantages:
- Generally more efficient and have longer lifetimes.
- Typically produce less noise and vibration.
Disadvantages:
- More expensive and more complex to construct.
Brushless Motor
